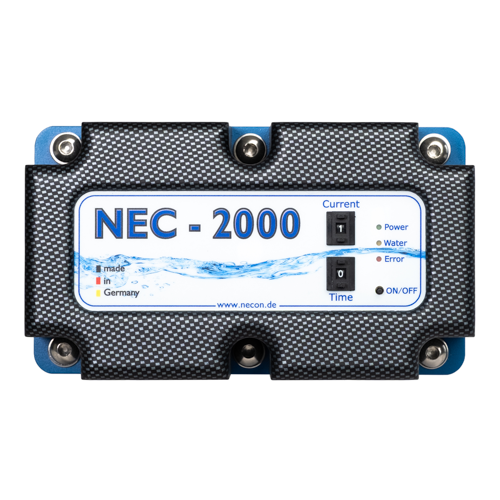

NEC-2000 - In-Ground Pool Water Purification System

Technical Specifications

• Max pool size: 60,000 litres
• Power rating: max. 36 Watt
• Power supply: 85–264V AC (wide-range), 50/60 Hz, output max. 24V DC
• IP rating: IP54 (splash-water protection)
• Dimensions: 200 × 215 × 115 mm
• Weight: 4.2 kg (electrode: 2.3 kg for 5 plates of 5mm each)
• Connections: 2" BSP internal thread (1" with supplied threaded nipple adaptor)

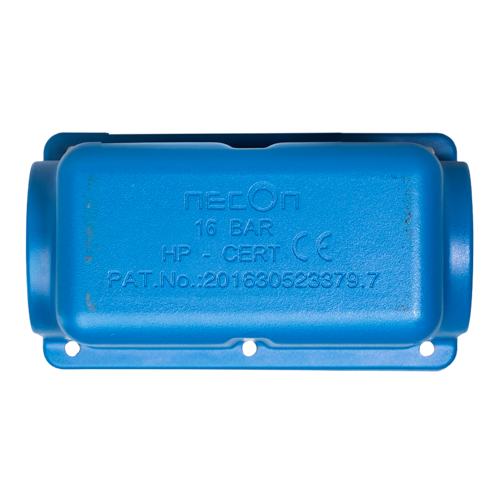

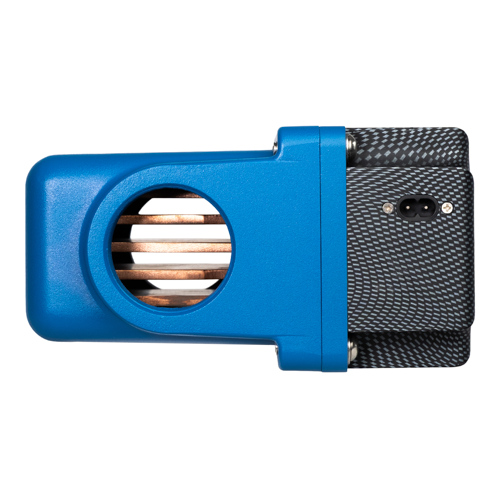

• Flow cell: Metal-cast with WRAS drinking water-certified coating
• Electrode part no.: C90009
• Electrode lifespan: approx. 3–5 years
• Manufacturer: NECON GmbH, Germany

Installation

Professional installation by a qualified pool installer is strongly recommended for the NEC-2000. Depending on your existing pipework, additional piping may be required. Professional installation is also required to maintain your warranty. The unit installs inline between your pool pump and filter — water can flow in either direction (inlet and outlet are interchangeable).

See the full Installation Guide for detailed instructions and electrical safety requirements.

Also Available

• Replacement Electrodes — NEC-2000 (Part No. C90009)
• Claritech Test Kit
• Copper Ion Test Tablets (Refill)

Ideal for large in-ground pools up to 60,000 litres. For above-ground pools and spas, see the NEC-20.
